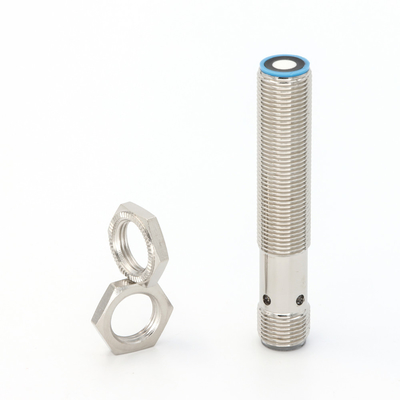

4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V

MOQ:	5 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U12-D120UT-R00A

Description:

Ultrasonic Sensors U12

Detection Range:

20-120mm

Output:

Analog Output 0-10V

LED Color:

Green, Red

Blind Zone:

0-20mm

Resolution:

0.1mm

Response Time:

Connection Type:

4 Pin,M12 Connector

Highlight:

U12 Industrial Ultrasonic Sensors

4 Pin Industrial Ultrasonic Sensors

4 Pin Ultrasonic Sensor IP67

Product Description

4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V

Product Attributes

Attribute	Value
Description	Ultrasonic Sensors U12
Detection Range	20-120mm
Output	Analog output 0-10V
LED Color	Green, Red
Blind zone	0-20mm
Resolution	0.1mm
Response time	18ms
Connection Type	4 pin, M12 connector

Product Description

M12 installation threaded sleeve, the shortest full length is only 67mm
Small blind zone, small sound cone, suitable for close-range fine detection

Basic Features

1 analog voltage output 0-10V
Realize detection distance learning function through white lines
Temperature compensation
Standard operating voltage DC 10-30V

Technical Parameters

Model	U12-D120UT-R00A
Detection range	20-120mm
Blind zone	0-20mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	18ms
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Red LED	no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED	object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection	200mA, Red LED and Green LED flashing at the same time
Load impedance	I/ < 300 Ohm, U/ > 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	4pin, M12 connector
Ambient temperature	-25℃ ~ +70℃(248~343K)
Storage temperature	-40℃ ~ +85℃(233~358K)
Weight	16g
Output type	I: 1 analog voltage output 0-10V

Dimensional Drawing
