10 - 30V DC Copper Industrial Ultrasonic Sensors Analog Switching Output Sensor

MOQ:	1
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U18-D1000N2IT-R00A

Overcurrent Protection:

200mA,Red LED And Green LED Flashing At The Same Time

Ambient Temperature:

-25℃ ~+70℃（248~343K）

Analog Voltage Output:

0-10V Up/down

Output Type U:

1 Analog Current Output 4-20mA + 1 Switching Output NPN, Up/down, NO/NC

Initialization Time:

＜ 500ms

Response Time:

Voltage:

10-30V DC

Material:

Copper

Highlight:

Copper Industrial Ultrasonic Sensors

30V DC Industrial Ultrasonic Sensors

Ultrasonic Analog Output Sensor

Product Description

Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K

Product Overview

The KRONZ Industrial Ultrasonic Sensors are high-performance devices designed for precise distance measurement in demanding industrial environments. With an IP67 enclosure rating, these sensors withstand harsh conditions while delivering accurate results.

Key Specifications

Attribute	Value
Overcurrent protection	200mA, Red LED And Green LED Flashing At The Same Time
Ambient Temperature	-25℃ ~ +70℃ (248~343K)
Analog Voltage Output	0-10V Up/down
Output Type	1 Analog Current Output 4-20mA + 1 Switching Output NPN, Up/down, NO/NC
Initialization time	< 500ms
Response Time	52ms
Voltage	10-30V DC
Material	Copper

Technical Features

Connection Type: 5pin, M12 Connector
Load impedance: I/ < 300 Ohm, U/ > 1k Ohm
Accuracy: ±1% (built-in Temperature Drift Compensation)
Input type: Teach-in And Synchronization
Resolution: 0.17mm
Enclosure Rating: IP67
Weight: 38g (lightweight and easy to install)

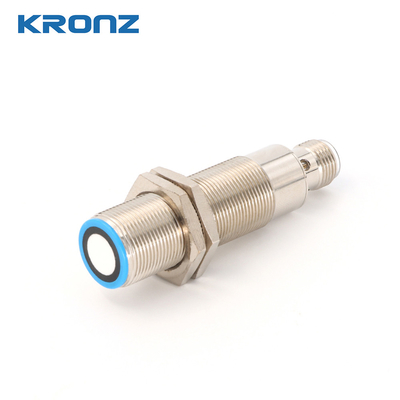

Product Images

Applications

These versatile sensors are ideal for:

Manufacturing plants
Automotive assembly lines
Warehouse facilities
Proximity sensing and object detection
Industrial automation systems

With a detection range of 60-1000mm and blind zone of 0-60mm, they provide precise measurement capabilities for diverse industrial scenarios.

Ordering Information

Origin: Guangdong, China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging: Polybags
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100,000 pieces/month

Construction & Durability

Built with high-quality materials including copper nickel-plated components, plastic fittings, and glass epoxy resin, these sensors offer exceptional durability and long service life in industrial environments.
